    ZXL-D700NonWovenFlatBagMakingMachine With Online Handle Attaching (4-in-1)

    Contact Or Visit Us

    • Product Detail

    Product Selective configuration


    ZXL-D700 non woven bag making machine(4-in-1) adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs flat bag, D-cut, drawstring bag, bottom gusset bag,side gusset bag and handle can be made by this machine.

    Product Characteristics

    1). It’s a ideal equipment for producing non-woven flat bag, D-cut bag, shoes bag and handle bag.
    2). Adopts top brand electricity, optical and pneumatic components, features reliable, long working life and easy maintenance.
    3). All the bags adopts thermal bonding by ultrasonic welding(Taiwan top brand ultrasonic device), features strong sealing effective, high speed, tidy and environmental friendly.
    4). With experienced engineers and well-trained technical workers and continuous innovation and reform, ensure our machine’s quality and mechanical stability.
    5). Equipped with auto loading device, Taiwan touch screen, computer control, auto feeding, counting and stopping, easy to operate, one or two person can handle it easily.
    6) . With CE certification and ISO9001 certification.

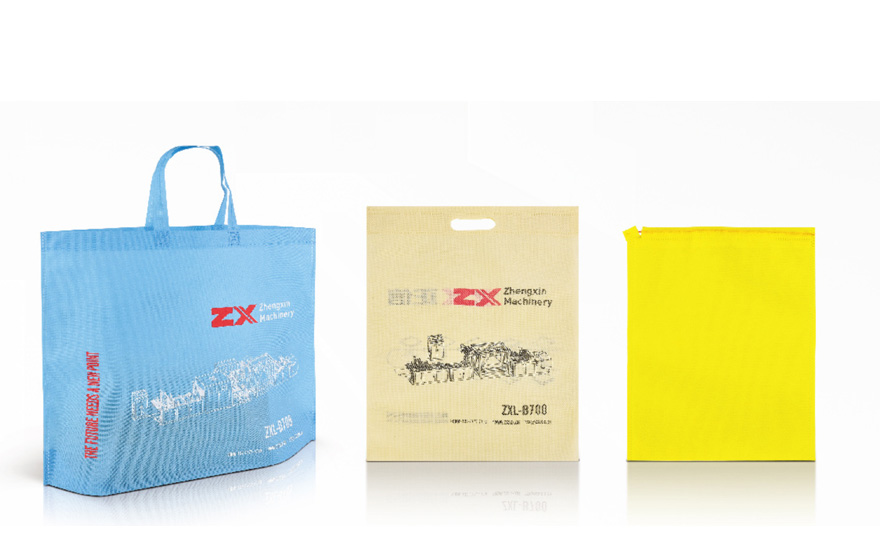

    Product Sample

    Technical Parameter

    Model ZXL-D700 ZXL-D800
    Fabric Roll Width 500-1300mm 500-1600mm
    Production Speec 40-120pcs/min 40-120pcs/min
    Bag Height 200-580mm 200-680mm
    Bag Width 100-800mm 100-800mm
    Handle Length 380-600mm 380-600mm
    Handle Material Thickness 50-100g/m2 50-100g/m2
    Material Thickness 30-100g/m2 30-100g/m2
    Voltage 380V/220V 380V/220V
    Total Power 15kw 18kw
    Overall Dimension 10000×2050×1900mm 10500×2350×2100mm
    Weight 3200kg 3500kg

    Detail Drawing

    Flow Diagram

    Leave A Message

    If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

    • #
    • #
    • #
    • #

    • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
